【Product description】: Xinxiang Great Wall cement rotary kiln is the main equipment of dry cement clinker production line.
【Product capacity】: 300-3000 t/d
【Product application】: Suitable for cement plants, clinker grinding plants.
1.Cement rotary kiln can be used in 300-3000 t/d cement plant
2.Advanced technology, easy maintenance
3.CHAENG provides a full set of cement equipment spare parts

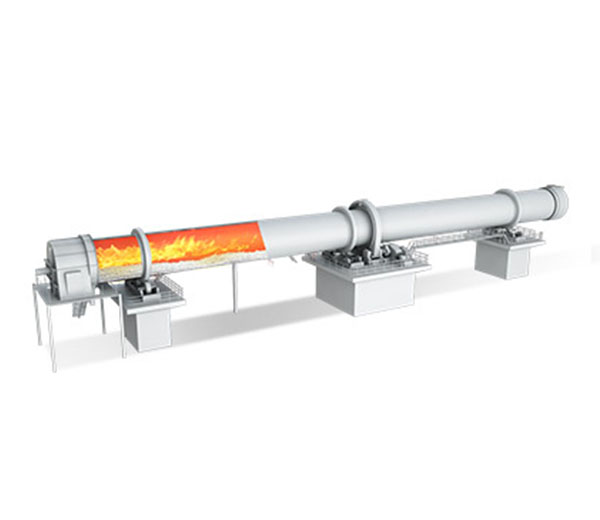

Cement rotary kiln, which is mainly used for calcinating cement clinker, is the main equipment of the new dry type cement production line. This equipment is mainly composed of cylinder, supporting device, supporting device with catch wheel, transmission device, lubrication device, mobile kiln head and sealing device at the end of the kiln.
The rotary kiln is a cylindrical vessel, inclined slightly to the horizontal. The material is fed into the upper end of the cylinder. As the kiln rotates, the materials gradually move towards the lower end, and they may go a certain amount of stirring and mixing. Hot gases go through the rotary kiln, in the same direction as the process material, but usually in the opposite direction. The hot gases may be generated in an external furnace, or may be generated by a flame inside the kiln. They are repetitively scattered in the air so that they are in full contact with the hot air, the material is dried gradually
| Model (m) | Kiln pitch(%) | Output (t/d) | Supporting number | Total weight (t) |
|---|---|---|---|---|
| Φ 3.2x50 | 3.5 | 1000 | 3 | 235 |
| Φ 3.3x52 | 3.5 | 1200 | 3 | 280.8 |
| Φ 3.5x54 | 3.5 | 1650 | 3 | 334.2 |
| Φ 4x60 | 3.5 | 2500 | 3 | 487.5 |
| Φ 4.2x60 | 3.5 | 2800 | 3 | 576.1 |
| Φ 4.3x64 | 4 | 3200 | 3 | 585 |
| Φ 4.5x66 | 3.5 | 4000 | 3 | 710.4 |
|
Φ 4.7x72 |
4 | 5000 | 3 | 825 |
| Φ 4.8x72 | 4 | 5000 | 3 | 847 |
| Φ 4.8x74 | 4 | 5000 | 3 | 841 |
| Φ 5x60 | 3.5 | 5500 | 2 | 787 |
| Φ 5.2x61 | 3.5 | 6000 | 2 | 859 |

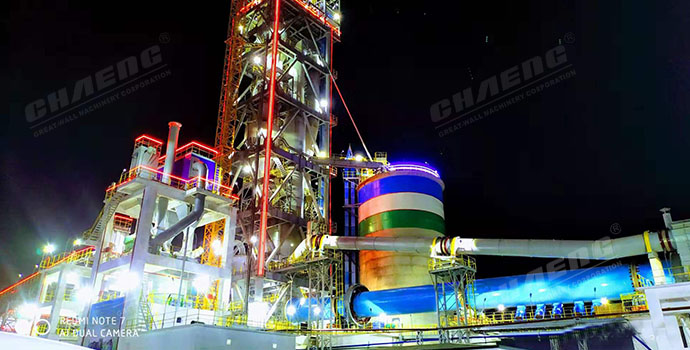

Due to the central Asian region is under the influence of "One Belt and One Road" policy, they started to develop the infrastructure construction, will undoubtedly increase the demand for cement. After a multinational investigation contrast, Uzbekistan customer officially signed a cement production line of 1000TPD with CHAENG (Xinxiang Great Wall Machinery) on March 16, 2016.
