【Weight】: 10-35 tons
【Materials】: ASTM: 1045 / DIN: CK45 / BS: 080M46
【Application】: Rotary Kiln, Ball Mill
【Customized】: Yes

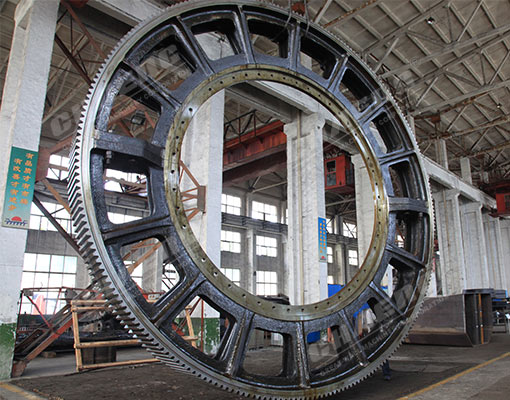

1. The particular heat treatment technology is used for the big gear ring manufactured by CHAENG which makes the improvement to the structure optimization and the hardness of the product. The performance of wear-resistant and anti-impacting is also enhanced greatly.
2. The high-strength steel was used by us in manufacturing the big gear ring. We also take the optimization for the product against the operation characteristics of the rotary kiln to ensure the stability of the component during the long time operation and extend the service life of the component.
3. Our company has rich production capability in steel castings. For the components such as the girth gear ring, we can provide them in large production quantity with a short cast period and large amount.
Simulation & analysis
Wood pattern
Sand mould
Smelting
Molten steel test
Pouring
Sand cleaning
Heat treatment
Finishing
Machining
Non-destructive testing
Packaging & delivery
| Item | Introduction |
|---|---|
| Materials | Cast steel |
| Processes | Casting, finishing, machining, testing |
| Test | chemical composition, mechanical property, dimensional check, UT, MT, PT and so on. |
| Certificate | ISO9001:2015, ISO14001:2015, OHSAS 18001:2007 |
| Machining | Rough machined, semi-finished machined, finished machined |
| Heat treatment | Normalized, Normalized and Tempered, Quench and Tempered. CHAENG has2 sets of heat treatment furnaces (max 18m*7m*4m). |
| Molding pit | The deepest molding pit is 45m*16.1m*(-6.0m), the largest casting pit is 87m*16.1m*(-3.5m) |
CHAENG girth gears with excellent product quality are not only sold throughout China, and also have been successfully exported to foreign markets.
CHAENG girth gears are applied to the Xinjiang Tianshan Group, Henan Meng Group, and other well-known domestic and foreign cement enterprises, for the normal operation of ball mill and rotary kiln.
