    3. How to judge the temperature of the rotary kiln

      14 Sep,2015 UTC+8 Views: 73

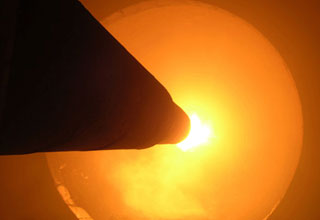

      23.jpg1. Judge from the temperature of the flame

      Under the detection of colorimetric pyrometer and the electronic computer, we can get a data close to the actual temperature. Besides, to watch the colors of the flame is another way to know its temperature. The heat current is driven by the ongoing fuel combustion. The heat released from the flame makes the kiln hot and hot. So Kiln’s temperature is risen with the ones of flame.

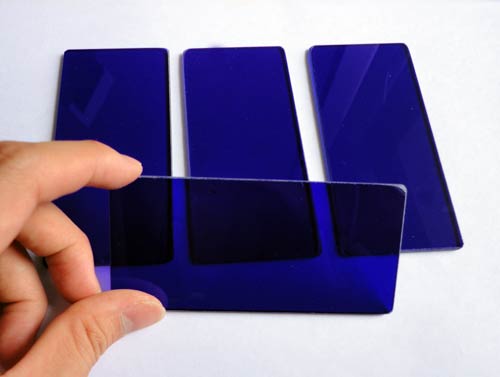

      Look at the table 1.1. Colors and its equivalent temperatures can be figured out clearly. The color is seen without the cobalt glass. Temperatures are higher if we see these colors via a cobalt glass.

        Tab-1.1



      Color

      T()

      Color

      T()

      Red

      475

      Orange to Yellow

      900-1090

      Red/ Crimson

      475-650

      Yellow to light yellow

      1090-1320

      Crimson—Cherry-red

      650-750

      Light yellow to white

      1320-1540

      Cherry-red to Bright cherry-red

      750-825

      White to dazzling white

      1540

      Bright cherry-red to orange

      825-900





      2. The height of the clinker is lift up.

      ①In the normal circumstance, the meal is rotated with the kiln wall and fallen down at a certain height. Usually, the raw meal is with low viscidity and fine particle size;

      ②when the kilns’ temperature is higher than the normal ones, they are lifted more higher than the usual time, too. It is more viscidity when fallen down so that some of the particle size is thick and big as pie;

      ③if the firing temperature is much lower, the clinker will slip down of the kilns walls at the height of the low. The clinker particle size is cohesionless and slight.

      3. Judge from the clinker particle size 24.jpg

      ①Usual time: 5-15mm, feel fine and close in fingers, glossy color.

      ②High temperature: big and thick particle, such as, be in block.

      ③Low temperature: brownish red, finely granular structure and coarse, sometimes in powdery; sometimes the clinker is in yellow, which is known as the phenomenon of “underfiring.”

        4. Judge by the height of the clinker liter weight and free CaO

        ①High firing temperature: Clinker is densify, high liter weight and low free Cao.

       ?、贚ow firing temperature: low liter weight & high free Cao

       ?、跼ight firing temperature: liter weight is in ±50g.
